from matplotlib import cmBivariate Copulas
Author: Judith Claassen | Vrije Universiteit Amsterdam
General Introduction to Copulas
A copula is a method used to describe the dependence structure between several random variables, which have been widely used in research fields, such as finance and hydrology. While some other multivariate distributions, for instance a multivariate normal, allows only for a symmetric dependence structure with univariate and multivariate marginal distributions also being normal, copulas can model the joint distribution of multiple random variables separately from their marginal distributions.
The Copula is a multivariate distribution with all univariate margins being uniform on \([0,1]\) (Joe, 2014). Sklar’s Theorem states that any multivariate joint distribution function can be decomposed into marginal distributions and a copula function that describes the dependence structure between the variables (Sklar, 1959).
Sklar’s Theorem: Let \(F\) be the joint distribution function of a multivariate random vector \((X_1, X_2, \ldots, X_n)\), with marginal distribution functions \(F_1, F_2, \ldots, F_n\) for each variable. Then, there exists a copula function \(C: [0,1]^n \rightarrow [0,1]\) such that for all \((x_1, x_2, \ldots, x_n)\) in the support of \(F\), we have:
\[ F(x_1, x_2, \ldots, x_n) = C(F_1(x_1), F_2(x_2), \ldots, F_n(x_n)), \quad \mathbf{x}\in R^n \tag{1} \]
In this tutorial we will further explain bivariate copulas with the use of an example dataset
Data
The data used as an example is the Abalone dataset from the UCI database and has also been showcased in a chapter on vine copula based modelling by Czado and Nagler (2021). The data set contains measurements on diameter, length, and several types of weight (whole, shucked, viscera and shell) of abalones, a type of marine snail. For this example, only data on the female snails are included and are loaded in below.
datapath = (
"https://raw.githubusercontent.com/VU-IVM/vinecopula/develop/doc/sample_data.csv"
)
df = pd.read_csv(datapath)
df.head()| whole | shuck | vis | shell | diameter | length | rings | |
|---|---|---|---|---|---|---|---|
| 0 | 0.6770 | 0.2565 | 0.1415 | 0.21 | 0.420 | 0.530 | 9 |
| 1 | 0.7775 | 0.2370 | 0.1415 | 0.33 | 0.415 | 0.530 | 20 |
| 2 | 0.7680 | 0.2940 | 0.1495 | 0.26 | 0.425 | 0.545 | 16 |
| 3 | 0.8945 | 0.3145 | 0.1510 | 0.32 | 0.440 | 0.550 | 19 |
| 4 | 0.6065 | 0.1940 | 0.1475 | 0.21 | 0.380 | 0.525 | 14 |
Here, we will only fit a bivariate copula to two variables, whole and shuck, which have been visualized in the following scatter plot

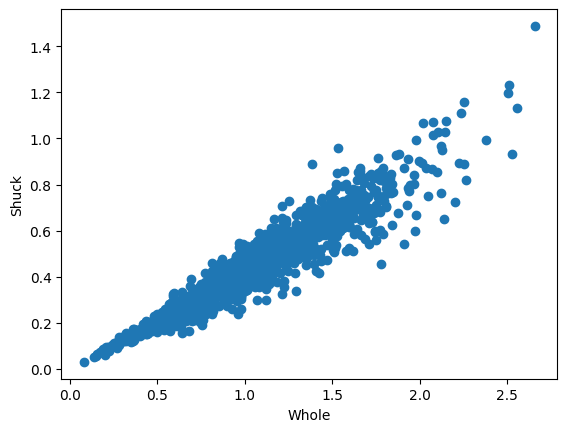

plt.scatter(df.whole, df.shuck) # scatter plot
plt.xlabel("Whole")
plt.ylabel("Shuck")Text(0, 0.5, 'Shuck')
Probability Integral Transform with Empirical CDF
In order to fit a copula to the data, the data has to be transformed into uniform margins. They can be obtained via the Probability Integral Transform (PIT). The probability integral transform states that if \(X\) is a continuous random variable with cumulative distribution function \(F_x(x)\), then the random variable \(\mathbf{u} = F_x(x)\) has a uniform distribution on the interval \((0, 1)\).
The cumulative distribution function \(F_X(x)\) of a random variable \(X\) is defined as the probability that \(X\) will have a value less than or equal to \(x\), expressed mathematically as:
\[ F_X(x) = P(X \leq x) \tag{2} \]
Where:
- \(F_X(x)\) is the function of \(X\).
- \(X\) is a real-valued variable.
- \(P\) denotes the probability.
Therefore, if \(x_i\) is a very low value in \(X\), its corresponding value in \(\mathbf{u}\), \(u_i\), will be close to 0, while a relatively high value in \(X\) would result in a value close to 1 in \(\mathbf{u}\).
Here we show an example using the empirical CDF (ECDF) which is the same as computing normalized ranks. The transformed data is called pseudo data. An example with a fitted parametric distribution is shown later.
Algorithm 1: Computing normalized ranks
Input: variable \(\mathbf{x}\) with \(n\) samples, where \(\mathbf{x} = \{x_1, x_2, \ldots, x_n\}\).
output: The ECDF values \(\mathbf{u} = \{u_1, u_2, \ldots, u_n\}\) represent the uniformly distributed pseudo data on corresponding to \(\mathbf{x}\).
Rank the data from 1 to \(n\), where the lowest value is assigned a rank of 1, the second lowest a rank of 2, and so on, until the highest value is assigned a rank of \(n\).Denote the ranks as \(R = \{r_1, r_2, \ldots, r_n\}\), where \(r_i\) represents the rank of \(x_i\).
For each sample \(x_i\) in the dataset compute the normalized rank \(u_i\) using the formula: \[ u_i = \frac{{r_i}}{{n}} \tag{3} \]
x = np.array(df)
u = pseudodata(x[:, :2]) # computes the pseudodata
u1 = u[:, 0]
u2 = u[:, 1]Fitting a Copula
Once the data has been transformed, a copula can be fit to it. The following table shows the available copula types and their ID. The ID is used as an input parameter to the fitting function to indicate which copula needs to be fitted.
Table 1
| ID | Copula | \(\mathbf{C(u_1, u_2)}\) | Parameters |
|---|---|---|---|
| 1 | Gaussian | \(\Phi_{\theta}(\Phi^{-1}(u_1),\Phi^{-1}(u_2))\) | \(\theta \in [-1, 1]\) |
| 2 | Gumbel | \(\exp \!\left[-\left((-\log(u_1))^{\theta }+(-\log(u_2))^{\theta }\right)^{1/\theta }\right]\) | \(\theta \in [1, \infty)\) |
| 3 | Gumbel 90 degrees | \(u_2 - \exp \!\left[-\left((-\log(1-u_1))^{\theta }+(-\log(u_2))^{\theta }\right)^{1/\theta }\right]\) | \(\theta \in [1, \infty)\) |
| 4 | Gumbel 180 degrees | \(u_1 + u_2 - 1 + \exp \!\left[-\left((-\log(1-u_1))^{\theta }+(-\log(1-u_2))^{\theta }\right)^{1/\theta }\right]\) | \(\theta \in [1, \infty)\) |
| 5 | Gumbel 270 degrees | \(u_2 - \exp \!\left[-\left((-\log(u_1))^{\theta }+(-\log(1- u_2))^{\theta }\right)^{1/\theta }\right]\) | \(\theta \in [1, \infty)\) |
| 6 | Clayton | \(\left[\max \left\{u_1^{-\theta }+u_2^{-\theta }-1;0\right\}\right]^{-1/\theta}\) | \(\theta \in [-1,\infty) \setminus \{0\}\) |
| 7 | Clayton 90 degrees | \(u_2 - \left[\max \left\{(1-u_1)^{-\theta }+u_2^{-\theta }-1;0\right\}\right]^{-1/\theta}\) | \(\theta \in [-1,\infty) \setminus \{0\}\) |
| 8 | Clayton 180 degrees | \(u_1 + u_2 - 1 + \left[\max \left\{(1-u_1)^{-\theta }+(1-u_2)^{-\theta }-1;0\right\}\right]^{-1/\theta}\) | \(\theta \in [-1,\infty) \setminus \{0\}\) |
| 9 | Clayton 270 degrees | \(u_2 - \left[\max \left\{u_1^{-\theta }+(1-u_2)^{-\theta }-1;0\right\}\right]^{-1/\theta}\) | \(\theta \in [-1,\infty) \setminus \{0\}\) |
| 10 | Frank | \(-{\frac {1}{\theta }}\log \!\left[1+{\frac {(\exp(-\theta u)-1)(\exp(-\theta v)-1)}{\exp(-\theta )-1}}\right]\) | \(\theta \in \mathbb{R} \setminus \{0\}\) |
| 11 | Joe | \({1-\left[(1-u_1)^{\theta }+(1-u_2)^{\theta }-(1-u_1)^{\theta }(1-u_2)^{\theta }\right]^{1/\theta }}\) | \(\theta \in [1, \infty)\) |
| 12 | Joe 90 degrees | \({u_2 - (1-\left[(u_1)^{\theta }+(1-u_2)^{\theta }-(u_1)^{\theta }(1-u_2)^{\theta }\right]^{1/\theta }})\) | \(\theta \in [1, \infty)\) |
| 13 | Joe 180 degrees | \({u_1 + u_2 -\left[(u_1)^{\theta }+(u_2)^{\theta }-(u_1)^{\theta }(u_2)^{\theta }\right]^{1/\theta }})\) | \(\theta \in [1, \infty)\) |
| 14 | Joe 270 degrees | \({u-1 - (1-\left[(1-u_1)^{\theta }+(u_2)^{\theta }-(1-u_1)^{\theta }(u_2)^{\theta }\right]^{1/\theta }})\) | \(\theta \in [1, \infty)\) |
| 15 | Student | \(T_{\theta_2} \left( T_{\theta_2}^{-1}(u_1), T_{\theta_2}^{-1}(u_2); \theta_1 \right)\) | \(\theta_1 \in [-1, 1] \text{ and } \theta_2 \in [0, \infty)\) |
Where:
- \(\Phi_{\theta}\) is the bivariate standard normal cumulative distribution function with correlation parameter \(\theta\).
- \(\Phi^{-1}\) is the inverse of the univariate standard normal cumulative distribution function.
- \(T_{\theta_2}\) is the bivariate cumulative distribution function (CDF) of the Student’s t distribution with \(\theta_2\) degrees of freedom and correlation parameter \(\theta_1\).
- \(T_{\theta_2}^{-1}\) is the inverse univariate CDF of the Student’s t distribution with \(\theta_2\) degrees of freedom.
When fitting a copula to data, the parameters of the selected copula family are estimated. The estimation method depends on the copula family.
In this example we will use the bestcop function to estimate the copula that fits the data best using all copulas in Table 1. However, also a selection of copulas can be provided if the user is not interested in fitting all. The goodness of fit is measured using the Akaike Information Criterion (AIC)
The formula for the AIC is:
\[ \text{AIC} = -2 \ell + 2D \tag{4} \]
Where:
- \(\ell\) is the log-likelihood with parameters \(\theta\) and observed data \(x_1, x_2\), is given by:
\[ \ell(u_1, u_2 | \theta) = \sum_{i=1}^{n} \log(c(u_1, u_2 | \theta)) \tag{5} \]
- \(D\) is the number of parameters estimated in the model.
The bestcop function returns the copula with the lowest AIC, which in the case below is a Survival Gumbel.
cops = list(range(1, 16)) # all copulas
cop, par, AIC = bestcop(cops, u) # fit best copula
copulas[cop] # best copula'Gumbel180'Rotations
Several Copulas can be rotated clockwise by 90, 180 and 270 degrees, such that:
\(C_{90}(u_1, u_2) = u_2 - C(1 - u_1, u_2)\)
\(C_{180}(u_1, u_2) = u_1 + u_2 - 1 + C(1 - u_1, 1 - u_2)\)
\(C_{270}(u_1, u_2) = u_1 - C(u_1, 1 - u_2)\):
(Klein et al., 2020)
Cumulative Distribution Function (CDF)
Once we have found a copula that fits the data well, we can calculate its CDF as stated in (1) (\(C(u_1, u_2\))) using the CDF function
y = CDF(cop, u, par) # CDF
U1, U2 = np.meshgrid(u1, u2)
x1 = 1 - np.arange(0, 1, 0.01)
y1 = 1 - np.arange(0, 1, 0.01)
X, Y = np.meshgrid(x1, y1)
z = CDF(cop, np.vstack((X.flatten(), Y.flatten())).T, par)
Z = np.resize(z, X.shape)

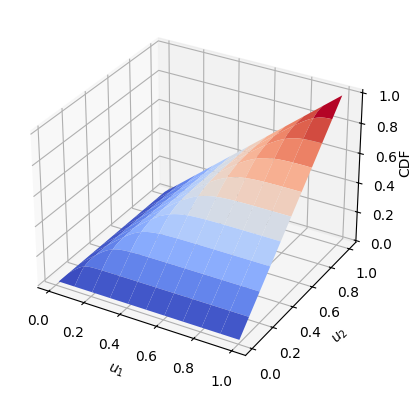

fig, ax = plt.subplots(subplot_kw={"projection": "3d"})
surf = ax.plot_surface(X, Y, Z, cmap=cm.coolwarm, rstride=10, cstride=10, linewidth=1)
ax.set_xlabel("$u_1$")
ax.set_ylabel("$u_2$")
ax.set_zlabel("CDF", rotation=90)
ax.zaxis.labelpad = -0.7
plt.show()
Probability Density Function (PDF)
The PDF of a copula, denoted as \(c(u_1, u_2, \ldots, u_n)\), describes the density of probability at a particular point in the joint distribution space defined by the copula. It quantifies the likelihood of observing a specific combination of quantiles for the variables.
The relationship between the CDF and the PDF of a copula the same as the relationship between the CDF and the PDF of a univariate continuous random variable. Specifically, the PDF is the derivative of the CDF (Czado & Nagler, 2021).
If \(C(u_1, u_2)\) is the copula CDF, then the copula PDF \(c(u_1, u_2)\) is given by taking the partial derivatives of the copula CDF with respect to each of its variables: \[c(u_1, u_2) = \frac{\partial C(u_1, u_2) }{\partial u_1 \partial u_2} \tag{6}\]
To compute the PDF we can use the PDF function
p = PDF(cop, u, par) # PDF
print(p)[6.43481561 0.86226783 5.68367378 ... 3.69354582 4.7430459 1.65446006]Conditional Cumulative Distribution Function (h-function)
The conditional CDF, also referred to as the h-function, is the conditional probability distribution of one variable given a known value of the other variable (Aas et al. 2007). The h-function is defined as the partial derivative of the copula CDF, \(C(u_1, u_2)\), with respect to the conditioning variable:
\[ h(u_1, u_2) = P(U_1≤u_1|U_2=u_2) = {C_{1|2}(u_1,u_2)} = \frac{\partial C(u_1, u_2 )}{\partial u_2} \tag{7} \]
In our example we have to variables, Whole and Shuck. If the pseudo data of Whole is \(u_1\) and the speudo data of Shuck is \(u_2\) and we want to calculate the h-function of Whole with respect to Shuck, \({C_{1|2}(u_1,u_2)}\), the partial derivative is used with respect to \(u_2\) as in (7). The h-function can be calculated using the hfunc function as follows:
# h-functions
v2 = hfunc(cop, u1, u2, par, un=1) # conditional CDF of Shuck (u2) given Whole (u1)
v1 = hfunc(cop, u1, u2, par, un=2) # conditional CDF of Whole (u1) given Shuck (u2)Inverse Conditional Cumulative Distribution Function (inverse h-function)
The inverse h-functions computes the reverse of the h-function. For example, if \(v_2 = {C_{1|2}(u_1,u_2)}\) then \({C_{1|2}^{-1}(u_1,v_2)} = u_2\). To showcase this we can use the hfuncinverse function with the previously calculated \(v_2\) and \(u_1\) to obtain \(u_2\). In the figure below it is clear that \({C_{1|2}^{-1}(u_1,v_2)} = u_2\)
u2_2 = hfuncinverse(cop, u1, v2, par, un=1)

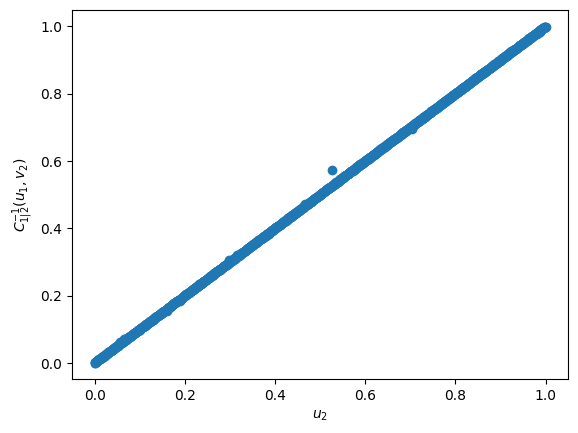

plt.scatter(u2, u2_2)
plt.xlabel("$u_2$")
plt.ylabel("${C_{1|2}^{-1}(u_1,v_2)}$")
plt.show()
Generating Random Samples from a Copula
Random samples from a fitted copula can be generated using the conditional CDF previously described. The general algorithm to do so is rather simple and intuitive.
Algorithm 2: Generating random samples from a copula based on the conditional CDF
Input: The copula parameters \(\theta\), and the number of samples \(n\)
Output: Random Samples \((\mathbf{u_1},\mathbf{u_2})\) of length \(n\) from the copula with parameter \(\theta\)
- Draw two independent uniform random variates \((\mathbf{u_1} ,\mathbf{v_1})\) of length \(n\)
- Set \(\mathbf{u_2} = {C_{1|2}^{-1}(\mathbf{u_1} ,\mathbf{v_1})}\)
However, depending on the definition of the copula, a more efficient simulation methods can be available. For example for the Gaussian copula random samples can be generated by first obtaining a set of correlated normally distributed variates \(v_1\) and \(v_2\) using Choleski’s decomposition, and then transforming these to uniform variables \(u_1 = \Phi(v_1)\) and \(u_2 = \Phi(v_2)\), where \(\Phi\) is the standard multivariate normal.
Random samples can be generated using the random function, as illustrated below:
# generate random samples
n = len(u)
ur = random(cop, par, n)

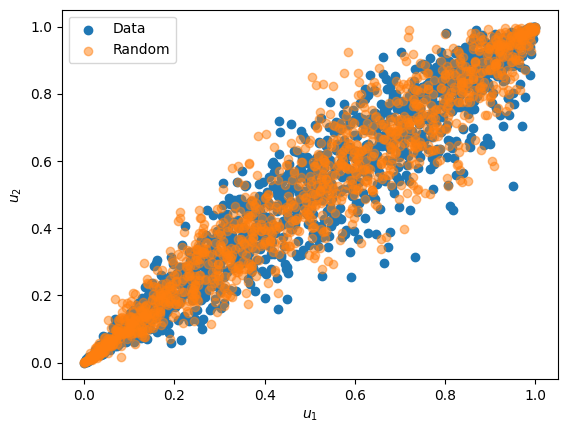

plt.scatter(u1, u2, label="Data")
plt.scatter(ur[:, 0], ur[:, 1], alpha=0.5, label="Random")
plt.xlabel("$u_1$")
plt.ylabel("$u_2$")
plt.legend()
Generating Conditional Random Samples from a Copula
Using a copula, it is also possible to generate random samples of one variable given a fixed variable of another. This can be achieved by following the same steps that are used in Algorithm 2, however, instead of using a random univariate for \(\mathbf{u_1}\), a known value of \(\mathbf{u_1}\) can be used, such that \(\mathbf{u_2} = {C_{2|1}^{-1}(\mathbf{u_1} ,\mathbf{v_2})}\) for specific \(\mathbf{u_1}\) values. Likewise conditional values of \(\mathbf{u_1}\) can generated with known values of \(\mathbf{u_2}\) and a random independent uniform variate \(\mathbf{v_1}\) , such that \(\mathbf{u_1} = {C_{1|2}^{-1}(\mathbf{v_1}, \mathbf{u_2})}\).
To generate conditional random samples the randomconditional function can be used, as showcased below:
# generate conditional samples
n = 100 # number of samples
ui1 = 0.3 # conditional value of u1
uii2 = randomconditional(
cop, ui1, par, n, un=1
) # conditional samples of u2 based on u1
ui2 = 0.8 # conditional value of u1
uii1 = randomconditional(
cop, ui2, par, n, un=2
) # conditional samples of u1 based on u2

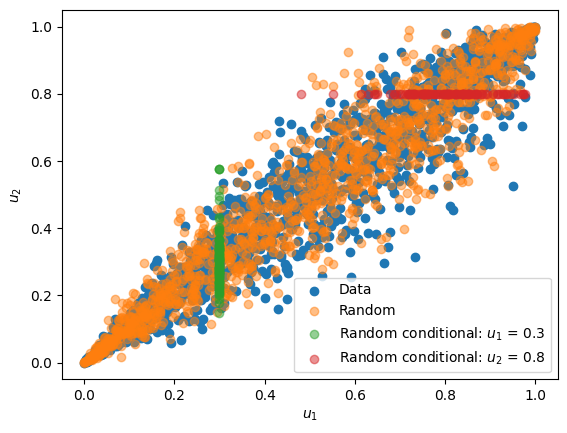

plt.scatter(u1, u2, label="Data")
plt.scatter(ur[:, 0], ur[:, 1], alpha=0.5, label="Random")
plt.scatter(
np.full(shape=n, fill_value=ui1),
uii2,
alpha=0.5,
label="Random conditional: $u_1$ = 0.3",
)
plt.scatter(
uii1,
np.full(shape=n, fill_value=ui2),
alpha=0.5,
label="Random conditional: $u_2$ = 0.8",
)
plt.xlabel("$u_1$")
plt.ylabel("$u_2$")
plt.legend()
Probability Integral Transform with Fitted CDF
As mentioned previously, the data can be transformed into uniformly distributed marginals via the PIT by using the ECDF (explained above) or by using an estimated parametric CDF.
To estimate different CDFs and to find the best fitting CDF for each variable the best_fit_distribution function can be used.
# Fit marginal distributions
x1dist = best_fit_distribution(x[:, 0]) # best fit distribution for Whole
x2dist = best_fit_distribution(x[:, 1]) # best fit distribution for ShuckOnce the best fit distribution has been determined, the CDF can be calculated using the statistical function provided in scipy.stats
u = x[:, :2].copy()
u[:, 0] = x1dist[0].cdf(u[:, 0], *x1dist[1]) # CDF of Whole
u[:, 1] = x2dist[0].cdf(u[:, 1], *x2dist[1]) # CDF of ShuckInverse transformation
In order to transform the simulated uniform data points to resemble the original data we can apply the inverse CDF to the pseudo data: \(F_{x}^{-1}(\mathbf{u})\). This can be achieved by using the previously fitted distribution and the pff function (Percent point function) of scipy.stats.
x1i = x1dist[0].ppf(
ur[:, 0], *x1dist[1]
) # calculat the ppf of the previously generated random samples of u1
x2i = x2dist[0].ppf(
ur[:, 1], *x2dist[1]
) # calculat the ppf of the previously generated random samples of u2

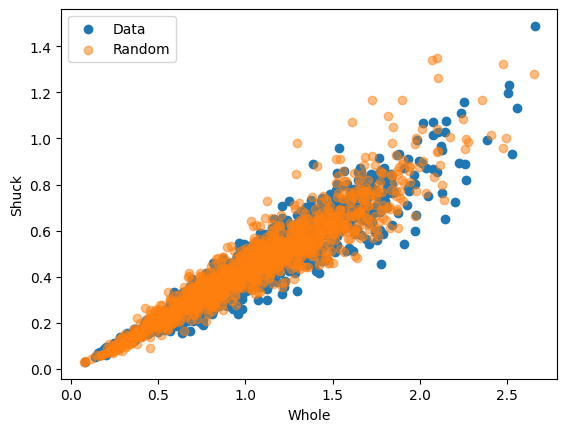

plt.scatter(x[:, 0], x[:, 1], label="Data")
plt.scatter(x1i, x2i, alpha=0.5, label="Random")
plt.xlabel("Whole")
plt.ylabel("Shuck")
plt.legend()
plt.show()
Discrete Variables
While copulas are more commonly used for continuous data, they can also be a useful tool to model discrete data. However, if the probability integral transfer method is used directly on discrete data with a discrete distribution, such that \(\mathbf{u} = F_x(\mathbf{x})\), \(\mathbf{u}\) would not be uniform. Therefore, additional steps are required to uniform marginals for discrete data. Hence, the following distributional transform can be used (Mitskopoulos et al., 2022):
\[ u = F_x−(x) + V(F_x(x) − (F_x−(x)) \tag{8} \]
where:
- \(F_x−(x) = P(X < x)\)
- \(F_x(x) = Pr(X <= x)\),
- \(V\) is a random variable uniformly distributed on [0,1] independent of \(X\).
To showcase this distribution transform, the rings variable from the Abalone dataset will be used as a discrete variable, and a copula will be fitted between the shell and rings variable. A discrete distribution will be fit to the rings data using the best_fit_distributiondiscrete function. The distributional transform described in (8) can be applied using the pseudodiscr function. The shell data can be transformed using the regular PIT method, after which a copula can be fit between the continuous and discrete variable, as showcased below.
x = np.vstack((np.array(df.shell), np.array(df.rings))).T # shell and rings data
xshelldist = best_fit_distribution(x[:, 0]) # best fit distribution of the shell data
xringsdist = best_fit_distributiondiscrete(
x[:, 1]
) # best fit distribution of the rings data
xcdf = xringsdist[0].cdf(x[:, 1], *xringsdist[1]) # cdf of the rings data
xpmf = xringsdist[0].pmf(x[:, 1], *xringsdist[1]) # pmf of the rings data
u = x.copy()
u[:, 0] = xshelldist[0].cdf(
u[:, 0], *xshelldist[1]
) # Probability Integral Transform of shell data
u[:, 1] = pseudodiscr(xcdf, xpmf) # distribution transform of rings data
u1 = u[:, 0]
u2 = u[:, 1]
cop, par, AIC = bestcop(cops, u) # fit best copula
copulas[cop] # best copula
u1 = u[:, 0]
u2 = u[:, 1]
n = len(u)
ur = random(cop, par, n) # generate random samples
x1i = xshelldist[0].ppf(
ur[:, 0], *xshelldist[1]
) # calculate the ppf of the previously generated random samples of u1
x2i = xringsdist[0].ppf(
ur[:, 1], *xringsdist[1]
) # calculate the ppf of the previously generated random samples of u2
# Create subplots

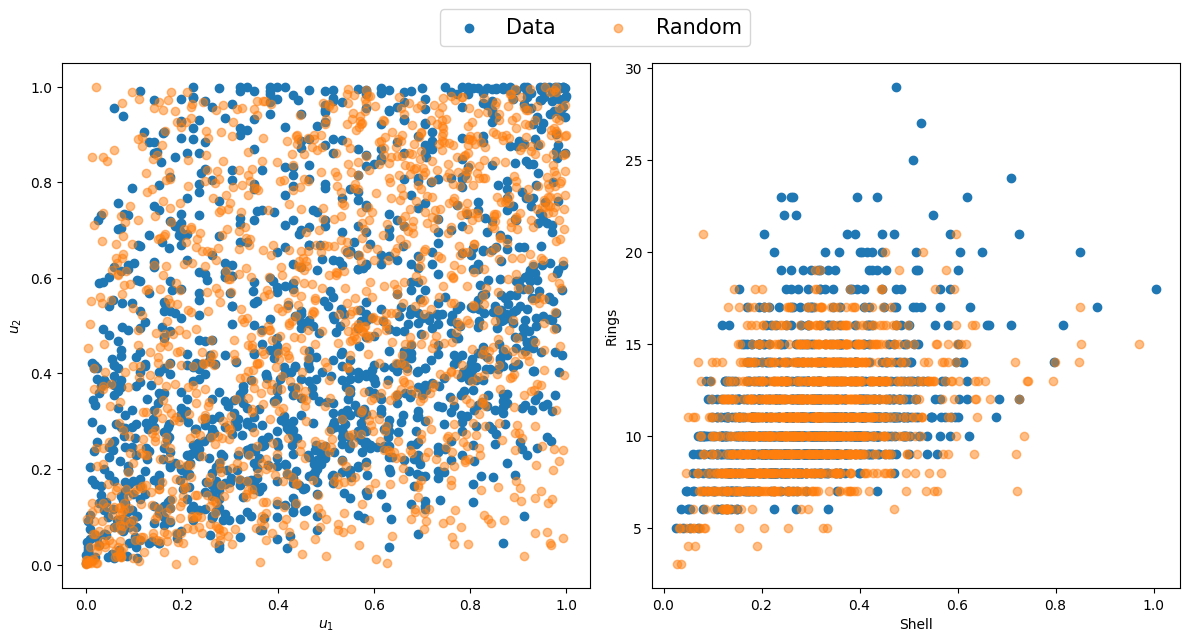

fig, axs = plt.subplots(1, 2, figsize=(12, 6))
axs[0].scatter(u1, u2, label="Data")
axs[0].scatter(ur[:, 0], ur[:, 1], alpha=0.5, label="Random")
axs[0].set_xlabel("$u_1$")
axs[0].set_ylabel("$u_2$")
axs[1].scatter(x[:, 0], x[:, 1])
axs[1].scatter(x1i, x2i, alpha=0.5)
axs[1].set_xlabel("Shell")
axs[1].set_ylabel("Rings")
fig.legend(loc="upper center", bbox_to_anchor=(0.5, 1.08), ncol=2, fontsize=15)
plt.tight_layout()
plt.show()
